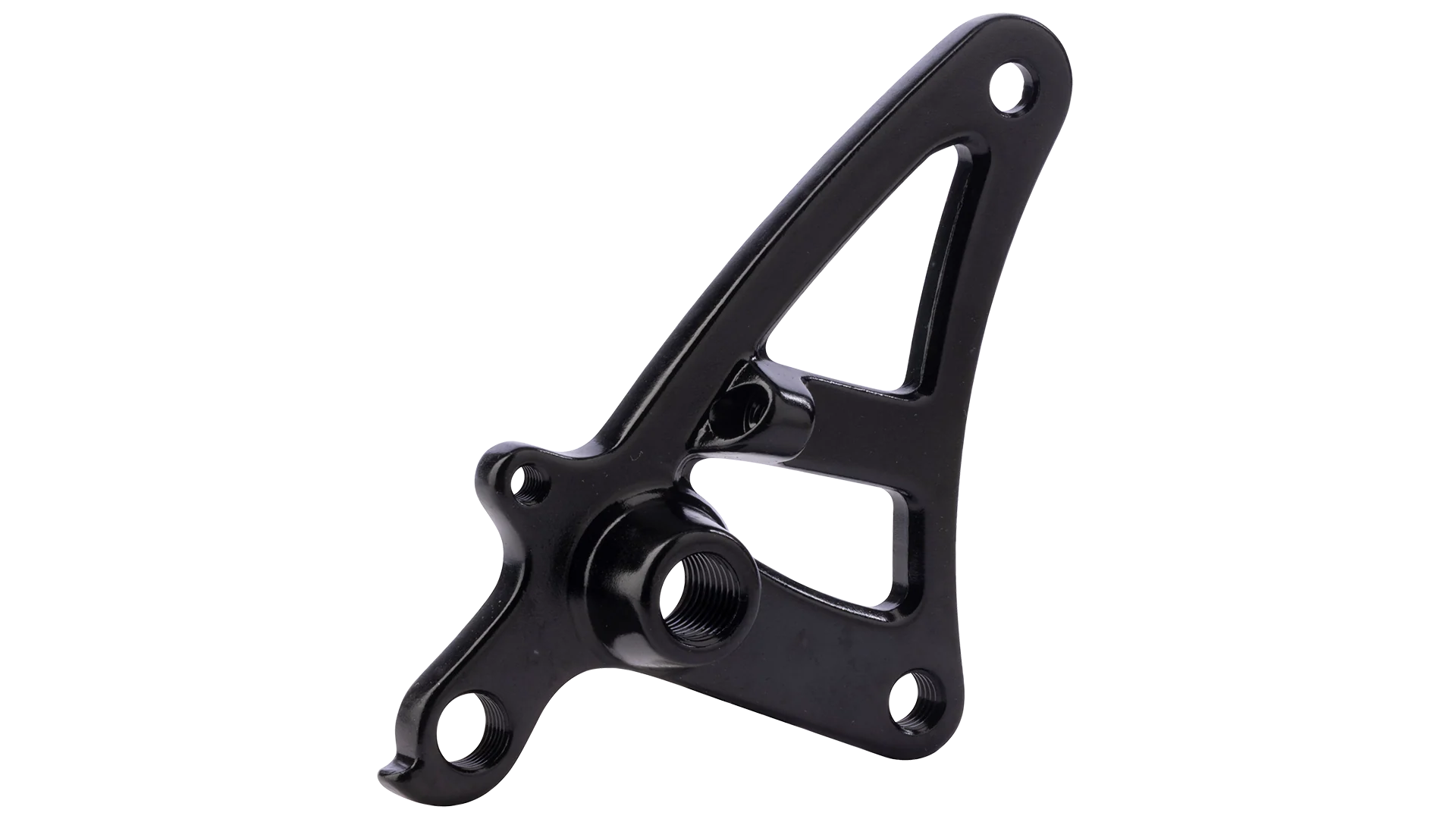

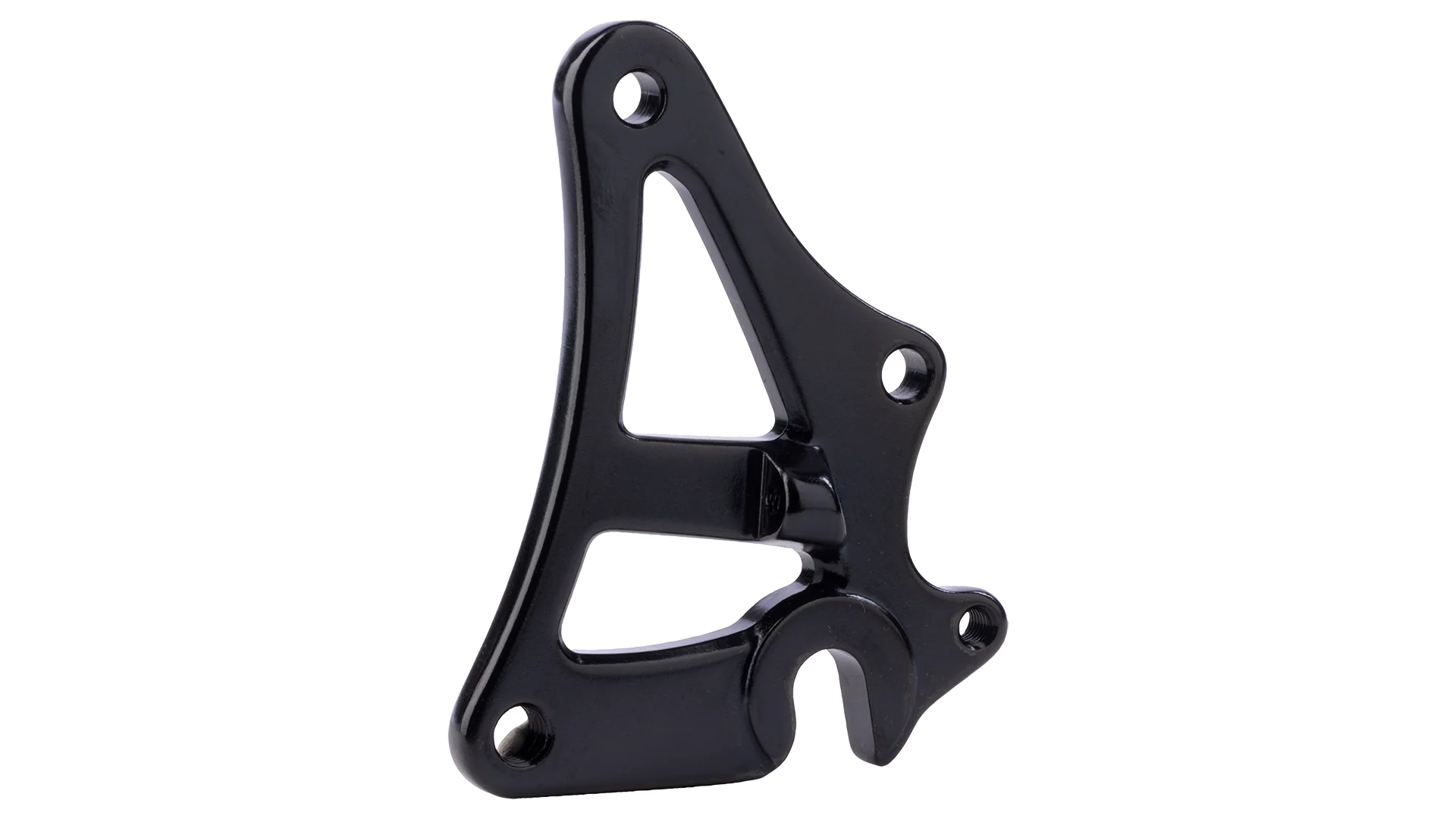

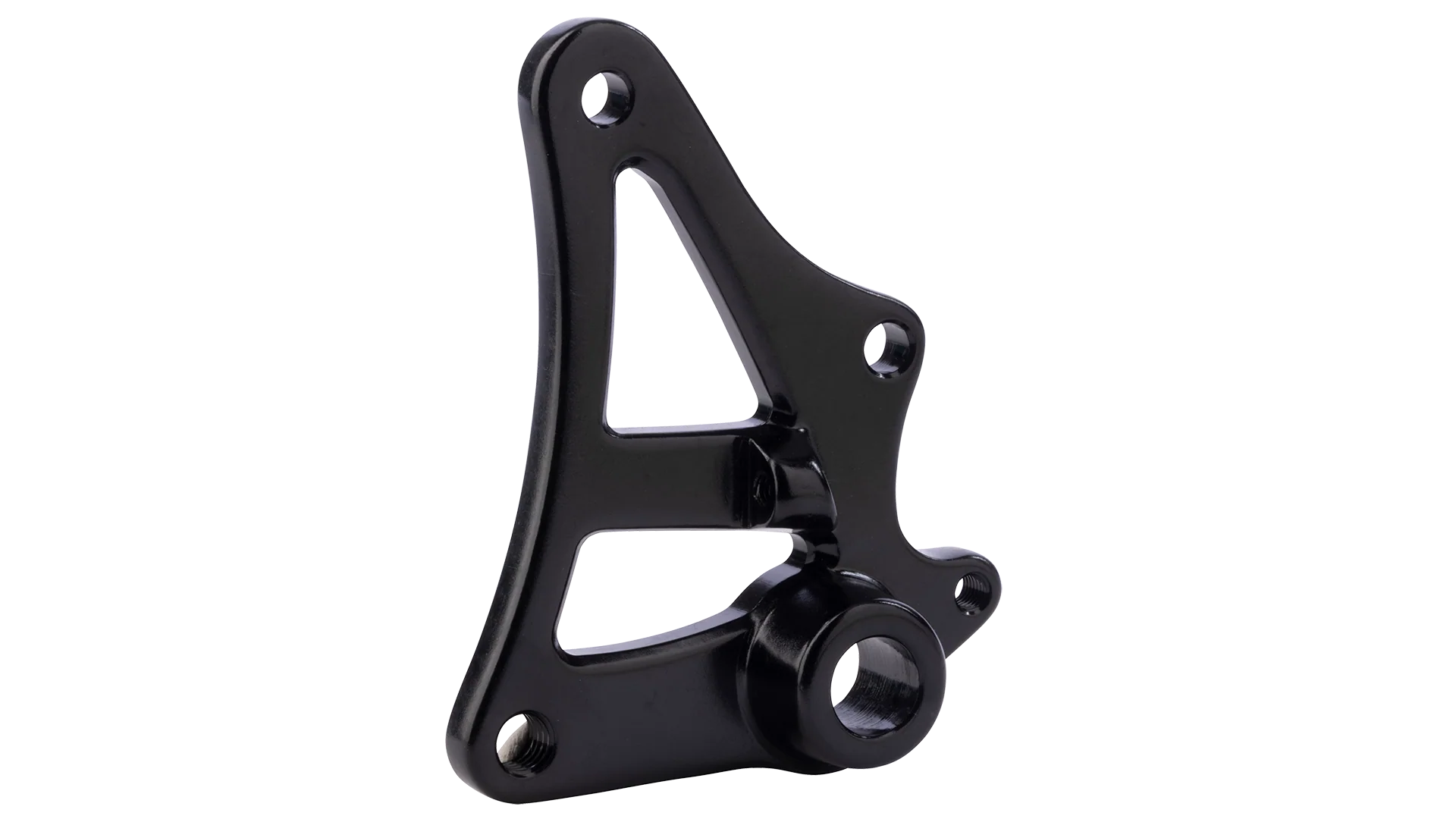

Alternator 1.0/1.5 Dropout Plates

Alternator 1.0 Dropouts are one of Salsa’s modular adjustable dropout systems. It consists of replaceable dropout plates and fixing hardware that are specifically designed for, and only compatible with, Salsa frames using the Alternator 1.0 and 1.5 system.

Frames and hardware designed for the Alternator 1.0 and 1.5 dropout system are not interchangeable with frames or hardware designed for Alternator 2.0 or Flat-Mount dropout systems.

• FS0261 Alternator 1.0/1.5 Dropout Plate (non-drive side, thru-axle, flat-mount brake, fender mount)
• Allows for the rear axle to be set anywhere fore-aft in a 17mm range
• Only compatible with Salsa frames originally sold with Alternator 1.0 or 1.5 dropouts
• Fender mount
• Designed for flat-mount brake
• Accommodates 12mm thru-axle
• Non-drive side plate only
• FS0262 Alternator 1.0/1.5 Dropout Plate (drive side, quick-release, fender mount
• Allows for the rear axle to be set anywhere fore-aft in a 17mm range
• Only compatible with Salsa frames originally sold with Alternator 1.0 or 1.5 dropouts
• Fender mount
• Accommodates quick-release axle
• Drive side plate only
• Designed for post-mount brake
• Use only with Salsa Alternator 1.0 Hardware Kit (sold separately)
• Replacement for FS1384, FS1372
• FS0263 Alternator 1.0/1.5 Dropout Plate – drive side, thru-axle, fender mount
• Allows for the rear axle to be set anywhere fore-aft in a 17mm range
• Only compatible with Salsa frames originally sold with Alternator 1.0 or 1.5 dropouts
• Fender mount
• Accommodates 12mm thru-axle
• Thread pitch: 1.5
• Designed for post-mount brake
• Drive side plate only
• Designed for post-mount brake
• Use only with Salsa Alternator 1.0 Hardware Kit (sold separately)
• Replacement for FS8135
• FS0259 Alternator 1.0/15. Dropout Plate (non-drive side, quick-release, post-mount brake, fender mount)
• Allows for the rear axle to be set anywhere fore-aft in a 17mm range
• Only compatible with Salsa frames originally sold with Alternator 1.0 or 1.5 dropouts
• Fender mount
• Designed for post-mount brake
• Accommodates quick-release axle
• Non-drive side plate only
• Replacement for FS1372, FS1381
• FS0260 Alternator 1.0/15. Dropout Plate (non-drive side, thru-axle, post-mount brake, fender mount)
• Allows for the rear axle to be set anywhere fore-aft in a 17mm range
• Only compatible with Salsa frames originally sold with Alternator 1.0 or 1.5 dropouts
• Fender mount
• Accommodates 12mm thru-axle
• Designed for post-mount brake
• Non-drive side plate only
• Use only with Salsa Alternator 1.0 Hardware Kit (sold separately)
• Replacement for FS1383
